Mechatronic connectors for DSG7 DL501 0B5 OB5 box
search
Mechatronic connectors for DSG7 DL501 0B5 OB5 box
  • Mechatronic connectors for DSG7 DL501 0B5 OB5 box
  • mechatronic location DSG7 0B5 S-tronic, DL501 - 7Q

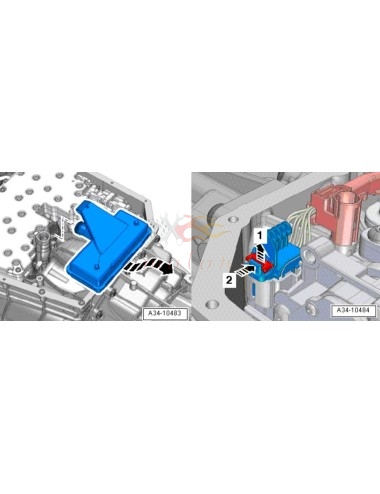

  • 0B5 disassembly 1 box connection DSG7 0B5, DCT, S-tronic, DL501 - 7Q
  • 0B5 disassembly 2 take out strainer disconnect box DSG7 0B5, DCT, S-tronic, DL501 - 7Q

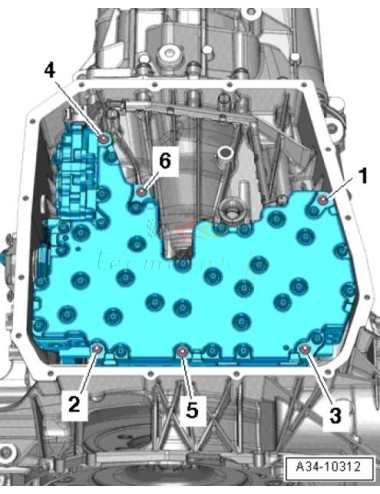

  • 0B5 disassembly 3 remove mechatronic box removal DSG7 0B5, DCT, S-tronic, DL501 - 7Q

Mechatronic harness for DSG S-Tronic 0B5, DL501 - 7Q box

Also available in pack with an oil change kit (more economical) see > here

Mechatronic harness for DSG7 Audi 0B5, S-tronic, DL501 - 7Q gearbox

€238.78 Tax included | 198,98 € HT
Quantity
Deadline 7 days

Info:

Mechatronic harness for 0B5, S-tronic, DL501 - 7Q gearbox

Content:

New generation electrical harness (modified by Audi following malfunctions)
Procedure in French for dismantling and reassembling the mechatronics

Installation is simply carried out by changing the parts via the oil pan without dismantling the transmission.
No reprogramming necessary


Common S-Tronic Problems:

Gears that shift poorly (often 1° and 2°) or reverse and forward gear difficult to engage, unstable engine idling:

These symptoms most often come from the solenoid valves which regulate the pressure of the mechatronics.
In fact, the solenoids are heavily stressed and wear out to the point of causing gearbox failures.

Gearbox overheating warning light, drop in engine power:

Following wear of the temperature control solenoid valve, the oil heats up too much and the car can also malfunction and limit engine torque, even stopping completely (fault code P17D800).

This original Audi repair kit solves these problems at an infinitely lower cost than in the Audi network.

DSG mechanical subgroups:

Sub-box 1
The odd gears (1, 3, 5, 7) are driven by the central primary shaft 1 with the clutch E1.

Sub-box 2
Even gears (2, 4, 6) and reverse are driven by primary shaft 2 (a hollow shaft), with clutch E2.

The S Tronic 7 gearbox equips some of these cars:

Audi A4 (8K2 - 8K5 - 8KH) (11/07--), Audi A5 (8F - 8T) (06/07--), Audi A6 (4G2 - 4G5 - C7) (11/10--), Audi A7 Sportback (4GA) (10/10--), Audi Q5 (8R) (11/08--)

The 0B5 mechatronics solenoid valves:

N433 Valve 1 in sub-box 1 (for positioner 1-3) Unavailable
N434 Valve 2 in subbox 1 (for positioner 7-5) Unavailable
N435 Valve 3 in sub-box 1 (for clutch valve E1, activation) available as adaptable
N436 Valve 4 in subbox 1 (for pressure regulation of subbox 1)
N437 Valve 1 in subbox 2 (for 2-R positioner) Unavailable
N438 Valve 2 in sub-box 2 (for positioner 4-6) Unavailable
N439 Valve 3 in sub-box 2 (for clutch valve E2, activation) available as adaptable
N440 Valve 4 in subbox 2 (for pressure regulation of subbox 2)
N471 Cooling oil valve
N472 Main pressure valve

Frequent DSG 0B5 DL 501 fault codes:

P0726 - Engine Control Unit RPM Signal (Invalid Signal)
P1740 - Clutch Temperature Too High
P173C - Valve 1 in sub-box 1 (electrical fault)
P173F - Valve 2 in sub-box 1 (electrical fault)
P174A - Valve 3 in sub-box 1 (electrical fault)
P174B - Valve 4 in sub-box 1 (electrical fault)
P174C - Valve 1 in sub-box 2 (electrical fault)
P174C - Valve 2 in sub-box 2 (electrical fault)
P174E - Valve 3 in sub-box 2 (electrical fault)
P174F - Valve 4 in sub-box 2 (electrical fault)
P176A - Actuator/Speed Selector 1 (non-adjustable)
P176A - Selector 1 cannot be regulated
P176B - Actuator/Speed Selector 2 (non-adjustable)
P176B - Selector 2 cannot be regulated
P179C - Main pressure valve (electrical fault)
P179D - Cooling oil valve (electrical fault)
P17D4 - Valve 3 in sub-box 1 (mechanical malfunction)
P17D8 - Torque limitation due to clutch temperature
P17E0 - Mechanical error of gearbox actuator 1
P17E0 – Actuator/Speed Selector 1 (Mechanical Error)

Mechatronics ob5 DL501

FAISCEAU-0B5-DL501-7Q

Data sheet

car brand
Audi
Car model
Audi A4 (8K2 - 8K5 - 8KH) (11/07--) DSG 7 vitesses Quattro
Audi A5 (8F - 8T) (06/07--) DSG 7 vitesses Quattro
Audi A6 (4G2 - 4G5 - C7) (11/10--) DSG 7 vitesses Quattro
Audi A7 Sportback (4GA) (10/10--) DSG 7 vitesses Quattro
Audi Q5 (8R) (11/08--) DSG 7 vitesses Quattro
Motorization
2.0 TDI quattro
2.0 TFSI quattro
3.0 TDI quattro
3.0 TFSI quattro
3.2 FSI quattro
Type
DSG 7 - 0B5 - DCT - S-tronic - DL501 - 7Q
Reparation Mecatronique
